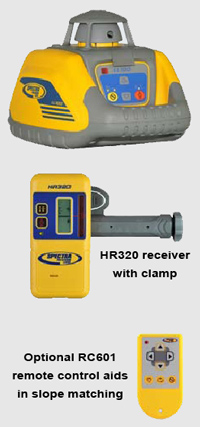

Spectra Precision LL100

The LL100 is PHM's most popular laser level, providing quality construction at an affordable price, backed up with a 3 year warranty, it's easy to see why.

All Spectra Precision laser levels have electronic, motor-driven leveling mechanisms providing fast, bubble free level references. You can also disable the compensator for grade matching.

The LL100 is a basic and reliable laser for indoor and outdoor applications, with a diameter range of 300m with receiver and accuracy of 3mm @ 30m. A quality HR320 receiver and rugged carry-all case come in the standard kit.

Spectra Precision LL100 Brochure (360KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

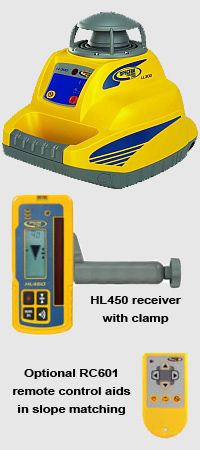

Spectra Precision LL300

The LL300 is a high quality laser level made to exacting standards in Germany.

All Spectra Precision laser levels have electronic, motor-driven leveling mechanisms providing fast, bubble free level references. You can also disable the compensator for grade matching.

The LL300 is built with superior components and perfect for indoor and outdoor applications, with a diameter range of 400m with receiver and accuracy of 2.2mm @ 30m. A variety of receivers are available and the LL300 is available with rechargeable batteries.

Spectra Precision LL300 Brochure (400KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

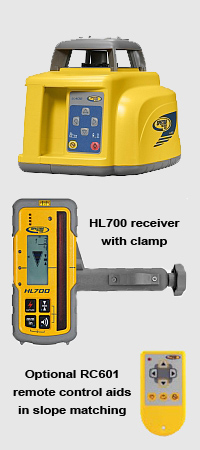

Spectra Precision LL400

The LL400 is a precision instrument being temperature calibrated to compensate for environmental changes and using a high accuracy leveling mechanism.

All Spectra Precision laser levels have electronic, motor-driven leveling mechanisms providing fast, bubble free level references. You can also disable the compensator for grade matching.

The LL400 is capable of single axis grade matching via remote control from 200m away and has a working diameter range of 800m with receiver and accuracy of 1.5mm @ 30m. A variety of receivers are available and the LL400 is available with rechargeable batteries.

Spectra Precision LL400 Brochure (325KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

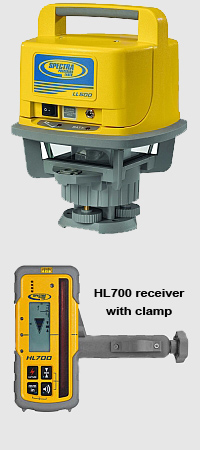

Spectra Precision LL500

The LL500 is a precision instrument much the same as the LL400 but uses an invisible beam and low power consumption design.

The LL500 uses a precision machanical pendulum leveling mechanism providing superior stability. A truly field proven design having been on the market and supported for more than ten years.

The LL500 is capable of operating for almost twice as long as the LL400 and has a working diameter range of 500m with receiver and accuracy of 1.5mm @ 30m. A variety of receivers are available and the LL500 is available with rechargeable batteries.
Spectra Precision LL500 Brochure (325KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

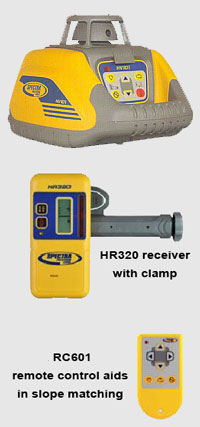

Spectra Precision HV101

Spectra Precision's line of HV, Horizontal & Vertical, lasers provide self-leveling or self-verticaling references as well as a 90' plumb beam for squaring. The HV101 is a great choice for its versatility and always kept in stock at PHM. Backed up with a unique 3 year warranty, the HV101 has proven to be our most popular full feature laser.

Spectra Precision HV lasers have motor-driven leveling, and you can disable the compensator for grade matching.

The HV101 is perfect for indoor and outdoor applications, with a diameter range of 300m with receiver and accuracy of 3mm @ 30m. A quality HR320 receiver, remote control and rugged carry-all case come in the standard kit.

Spectra Precision HV101 Brochure (630KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

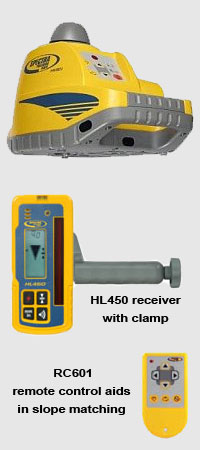

Spectra Precision HV301

The HV301 is a high quality laser made to exacting standards in Germany.

All Spectra Precision laser levels have electronic, motor-driven leveling mechanisms providing fast, bubble free level references. You can also disable the compensator for grade matching.

The HV301 is built with superior components and perfect for indoor and outdoor applications, with a diameter range of 400m with receiver and accuracy of 2.2mm @ 30m. A quality HL450 receiver, remote control, rechargeable batteries and rugged carry-all case come in the standard kit.

Spectra Precision HV301 Brochure (480KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

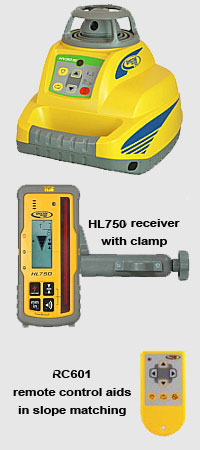

Spectra Precision HV301G

The HV301G is a high quality laser made to exacting standards in Germany with a high visibility green laser beam and protective hood.

All Spectra Precision laser levels have electronic, motor-driven leveling mechanisms providing fast, bubble free level references. You can also disable the compensator for grade matching.

The HV301G is built with superior components and perfect for indoor and outdoor applications, with a diameter range of 400m with receiver and accuracy of 2.2mm @ 30m. A quality HL750 receiver, remote control, rechargeable batteries and rugged carry-all case come in the standard kit.

Spectra Precision HV301G Brochure (480KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

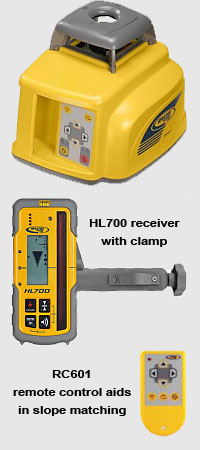

Spectra Precision HV401

The HV401 is a precision instrument being temperature calibrated to compensate for environmental changes and using a high accuracy leveling mechanism.

All Spectra Precision laser levels have electronic, motor-driven leveling mechanisms providing fast, bubble free level references. You can also disable the compensator for grade matching.

The HV401 is capable of single axis grade matching via remote control from 200m away and has a working diameter range of 800m with receiver and accuracy of 1.5mm @ 30m. A quality HL700 receiver, remote control, rechargeable batteries and rugged carry-all case come in the standard kit.

Spectra Precision HV401 Brochure (410KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

Spectra Precision GL512

The GL512 uses the same body as the precision HV401 but adds a single axis grade function with digital readout. Using the accompanying radio remote control, you can accurately set the desired grade from upto 100m away.

All Spectra Precision grade lasers have electronic, motor-driven leveling mechanisms providing fast, bubble free level references.

The GL512 caters to all aspects of construction from small developments upto large, machine-controlled sites. GL512 offers, single axis grades from -10% to +15% at 0.015% increments, diameter range of 600m with receiver and accuracy of 1.5mm @ 30m. The complete kit comes with, HL750 or CR600 receiver, radio remote control, rechargeable batteries and rugged carry-all case.

Spectra Precision GL512 & GL522 Brochure (220KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

Spectra Precision GL522

The GL522 uses the same body as the precision GL512 but has dual axis grade capabilities. Using the accompanying radio remote control, you can accurately set the desired grade from upto 100m away.

All Spectra Precision grade lasers have electronic, motor-driven leveling mechanisms providing fast, bubble free level references.

The GL522 caters to all aspects of construction from small developments upto large, machine-controlled sites. GL512 offers, dual axis grades from -10% to +15% at 0.015% increments, diameter range of 600m with receiver and accuracy of 1.5mm @ 30m. The complete kit comes with, HL750 or CR600 receiver, radio remote control, rechargeable batteries and rugged carry-all case.

Spectra Precision GL512 & GL522 Brochure (220KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

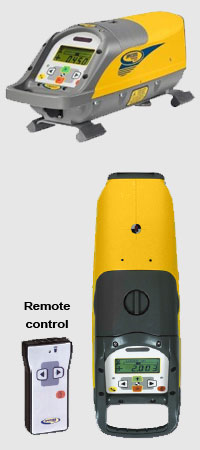

Spectra Precision DG511

The DG511 & DG711 pipe lasers are used for precise alignment and grading of pipes. With the largest grade range in the industry and tough metallic construction, Spectra Precision aims to be the best in the industry.

All Spectra Precision pipe lasers have electronic, motor-driven leveling mechanisms and the maximum allowable beam intensity for consistant, accurate positioning.

The DG511 has a hard anodized aluminium housing with rubber bumpers to endure in any environment, even submerged underwater to 3m depths. Grade range is from -15% to +40%, and line adjustment is 20°. A complete range of alignment and power accessories are available. For more information, please contact PHM Survey Equipment.

Spectra Precision GL512 & GL522 Brochure (220KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

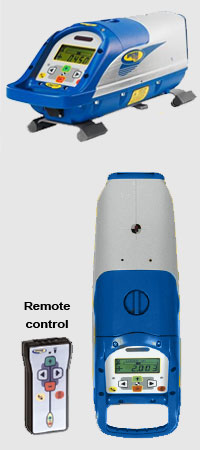

Spectra Precision DG711

The DG711 builds on the design of the DG511 adding temperature compensation, full feature remote, and added functions such as Line Set and Check and Line Center, all backed with an extended 2 year warranty. The shell strength has also been upped to an armored die cast structure.

All Spectra Precision pipe lasers have electronic, motor-driven leveling mechanisms and the maximum allowable beam intensity for consistant, accurate positioning.

The DG711 has a grade range of -15% to +40%, and line adjustment is 20°. A complete range of alignment and power accessories are available. For more information, please contact PHM Survey Equipment.

Spectra Precision GL512 & GL522 Brochure (220KB)
Complete Spectra Precision Construction Laser Brochure (1MB)

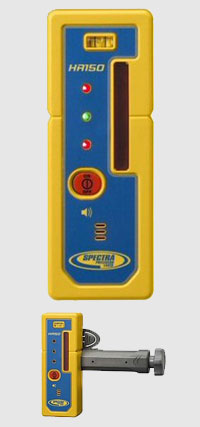

Spectra Precision HR150

• Heavy-duty magnet for mounting
• 3 channel, front and rear, high visibility LEDS (Red High
  and Low, and Green "On-Grade")
• Selectable 100 db output sound w/ 3 tone output for high,
  low and center
• Integrated level bubble for highly accurate readings
• Large marking notches on both sides of the unit
• 100m operating range (radius)
• Composite housing withstands 1.5m concrete drop
• General purpose clamp can be used on standard rectangular
  grade rods
• Warranty - One year exchange, 2 additional years of
  service protection plan
• Includes: HR150, C61 Clamp 2 X AA batteries and manual

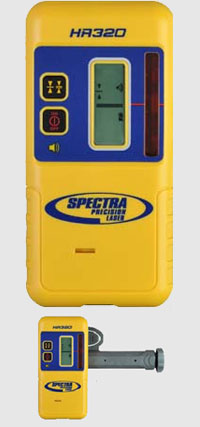

Spectra Precision HR320

• Reads the laser signal as it is transmitted
• Will detect a laser beam within 610 to 900 Nm wavelength
  with a beam size between 4mm and 19mm
• Automatic shut off if unused within 30 minutes
• Two visual LCD displays, a front mounted LED display for
  use in dark areas and synchronous audible tones
• On-Grade Sensitivity – Fine: ±1.0mm, – Coarse: ±3mm
• Warranty - Two years on internal components
• Includes: HR320 receiver, C59 General Purpose clamp,
  2 X AA batteries and multi-language manual

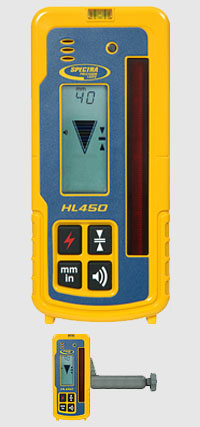

Spectra Precision HL450

• Digital readout in millimeters of elevation that provides
  a numeric display of ±40mm
• Readout is displayed on large front and rear LCDs
• Accurate measurements can be made without moving
  the rod clamp, saving time and increasing productivity
• Includes patented anti-strobe sensor preventing
  construction lights from setting off the receiver
• Large 102mm reception height
• Will withstand direct drops up to 1.5m onto concrete
• Full weather and dust proofing design, including the battery
  compartment
• 60+ hour battery life with 2AA batteries and automatic shutoff
  after 30 minutes
• Warranty: 2 year “No Excuses”, (3-Year Limited)
• Includes: HL450 receiver, ATI994903-01 clamp, Universal
  Multi-language User Guide, 2 x AA batteries

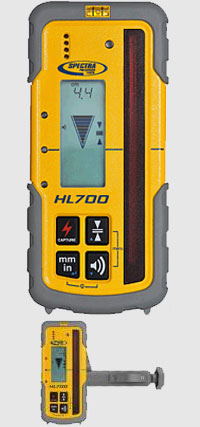

Spectra Precision HL700

• Digital readout in millimeters of elevation that provides
  a numeric display of ±60mm
• Readout is displayed on large front and rear LCDs
• Includes patented anti-strobe sensor preventing
  construction lights from setting off the receiver
• Large 127mm reception height
• Durable "hard hat" design withstands drops up to 3m
  on concrete
• Up to 450m operating range
• Full weather and dust proofing design, including the battery
  compartment
• 60+ hour with 2AA batteries and auto shutoff after 30 minutes
• Warranty: 3 year “No Excuses”
• Includes: HL700 receiver, ATI400103-01V Clamp, Universal
  Multi-language User Guide, 2 x AA batteries

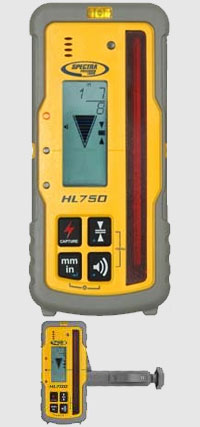

Spectra Precision HL750/HL750U

• Digital readout in millimeters of elevation that provides
  a numeric display of ±60mm
• Readout is displayed on large front and rear LCDs
• Includes patented anti-strobe sensor preventing
  construction lights from setting off the receiver
• Large 127mm reception height
• Durable "hard hat" design withstands drops up to 3m
  on concrete
• Up to 450m operating range
• Full weather and dust proofing design, including the battery
  compartment
• 60+ hour with 2AA batteries and auto shutoff after 30 minutes
• HL750U receives green and red laser beams and has
  built in radio to forward display to secondary HL750U
• Warranty: 3 year “No Excuses”
• Includes: HL700 receiver, ATI400103-01V Clamp, Universal
  Multi-language User Guide, 2 x AA batteries

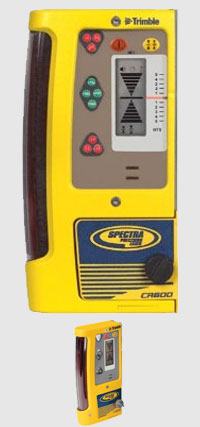

Spectra Precision CR600

• Ultra-rugged Magnesium housing
• Magnetic mount for machine control
• 15-channel linear LCD display, for easy offsets
• 5-channel Super bright LED display for reading over a
  long distance or at an angle
• Wrap-around 270 degree photocells
• Up to 450m operating range
• Warranty: 3 year “No Excuses”
• Includes: CR600 receiver, C50 clamp, C51 magnetic mount,
  multi-language manual
